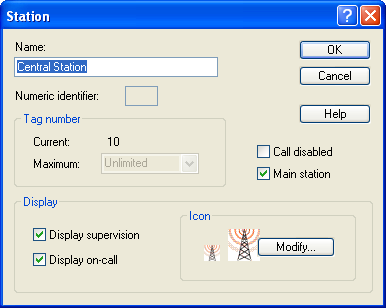

Station Properties

This dialog box defines the properties of a station. It is called from the tree of the main screen (see § 4.6.1.2 "Station").

Name Name of the station. This name must be unique in the list of stations. Numeric identifier The numeric identifier is the code to enter, at the beginning of a telephonic communication, just before the ID code of the operator to identify the station to which the calling or called operator is attached. This code is only needed on main stations which have set a non null length for the station identifier in the vocal server dialog box (see § 7.8.1 "Vocal Server options"). In the opposite case, this field is grayed. Tag number The field Current displays the number of tags that are declared in the station. The field Maximum displays the maximum number of tags authorized for the station. For the basi c station (1 st station in the tree), it"s the maximum number of tags authorized by the license. This number cannot be modified (grayed field). For other stations, another value can be selected in the dropdown list. The proposed values depend on the software license. Call disabled When this option is checked, alarm calls issued from the station are disabled (ca call performed). This state is signalled by a red crossbar on the station icon ( ). Main station Type of the station. A main station receives the con figurations of the remote stations. During the synchronizations, the exchanged data are the data attached to the remote stations.
