Tag Group Properties

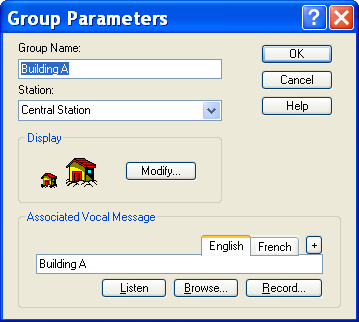

This dialog box defines the properties of a functional group. It can be called either from the « Groups » branch of the supervision tree of the main screen or from any other defined group branch (see § 4.6.1.6 "Tag g roups"), or from the property dialog box of a tag (see § 5.11 "Tag properties").

Group Name This name identifies the group. It must be unique among the groups of same level (groups having the same parent). Station This field displays the name of the station to which it is attached. Display Graphical representation of the grou p in the supervision tree (small and large icon). Click on the Modify... button to select another icon. Associated vocal message This field defines the name of an audio file containing the voice message associated with the group. If the typed text is not ended by ".WAV", the text will be automatically synthesized (if the Text To Speech option is active) in order to produce the voice message associated with the group. The sound file can be selected among the existing files by clicking on the Browse... button or directly recorded by clicking on the Record... button. Click on the Listen button to listen to the selected vocal message.
